AlphaDots

Get the reduced version of AlphaDots on Github or download the full version of AlphaDots.

This repository contains python code for the models used in the AlphaDots AIs. There are several models in the modelServer/model directory. The models are based on Keras and Tensorflow.

Besides the models there is a dataset converter which receives data from KSquares and saves the data as a numpy array. The modelServer is used to provide inference (“play the game”) for KSquares.

There also is documentation for the script that creates new AlphaZero models from scratch.

Please have a look at ksquares/src/alphaDots/README.md for documentation of the datasets used to train these models.

Requirements

Please install the following packages:

pip install tensorflow-gpu pyyaml keras matplotlib zmq protobuf numpy

Models

First try

This model is a 7 layer convolutional neural network. Each layer consists of 64 filters with 3 x 3 kernels. Filters are also called “feature maps”. The first six layers use the ReLU activation function while the last layers uses softmax.

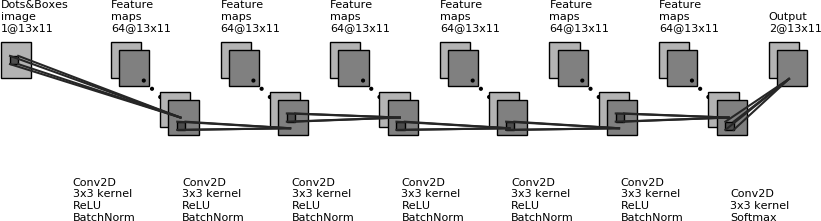

first try model architecture

The model was trained with stochastic gradient descend using a categorical crossentropy loss function. Training occured on 10000 examples for 50 epochs.

The input for the model is a greyscale image of the game’s state. The image data is normalized such that black corresponds to 0 and white to 1.

Stage one

Same model as first try. The model was trained on more training data. This was mostly about sending and receiving data more efficiently (using protobuf and zeroMQ instead of using actual .png image files for each training example)

Basic Strategy

Same model as first try. The model was trained on different training data than first try and stage one. The new data differs in the target images: instead of showing just one expected move, the target images may contain all equally good moves. This is useful in the first phase of the game, where the rule based opponents in KSquares randomly select one of many equally good lines.

LSTM

This model is built with the Keras layer ConvLSTM2D and is based on the Keras example conv_lstm.py

AlphaZero V1

Have a look at the AlphaZeroV1 model architecture.

This model is based on the model described in the AlphaZero paper. The model’s code is based on Chess Alpha Zero. In contrast to Chess Alpha Zero, this model does not have a Dense Layer for the policy output. Also it does not yet have a value output.

The architecture is modified to be fully convolutional to allow for arbitraryly sized board inputs. Thus there are no final dense layers.

This model uses a custom made Keras layer called LineFilterLayer for the policy output. The LineFilterLayer uses Tensorflow’s boolean_mask method to filter out all elements but the lines in the output image. As a result, the policy output is a vector of all lines in the Dots and Boxes game. The training data is converted accordingly.

When the AlphaZero model is instantiated, the LineFilterLayer needs to know the board size. While the rest of the model is fully flexible since it solely relies on convolutional layers, the LineFilterLayer must be adapted to different board sizes, because each board size requires a specific boolean filter mask. Although this is rather inconvenient, it does not restrict the model’s general abilities. The LineFilterLayer has no trainable parameters.

The input images in the StageOne dataset are converted to the format described in the AlphaZero paper: The input image represents each element with a different shade (value from 0 to 255), while the AlphaZero paper uses a multi plane input where each plane represents one element in a boolean encoding. For Dots and Boxes images there are five elements:

  1. Background
  2. Lines
  3. Dots
  4. Boxes captured by the first player
  5. Boxes captured by the second player

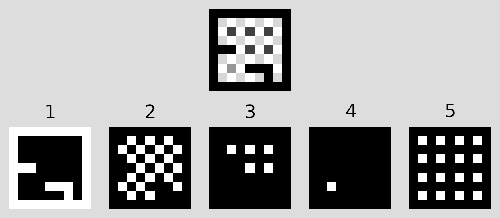

The five input planes for the neural network
The five input planes for the neural network

For each element there is a plane which is 1.0 on all positions where the corresponding element is present in the original input image and 0.0 otherwise.

The target images in the StageOne dataset always show exactly one line, which is the action of the Hard AI in KSquares. The target images are converted to a vector where each entry represents one line. The vector’s length corresponds to the number of lines in the image.

Training was done on a small 5x4 StageOne dataset.

AlphaZero V2

This model is just like V1 and simply received more training on a 6x6 StageOne dataset consisting of 1,000,000 examples.

AlphaZero V3

This model takes the trained model from AlphaZero V2 and trains it further on a 5x4 StageOne dataset with 1,000,000 examples.

Basic Strategy 2

This model is like the first Basic Strategy model, but with the new LineFilterLayer and multi plane input data.

LSTM2

This model is like the first LSTM model, but this one uses the LineFilterLayer and multi plane input data.

AlphaZero V4

Nothing changed concerning the model’s architecture. Instead, the model was trained from scratch on a new StageOne dataset where 90% of the games were made solely with hard ai moves and 10% of the games included random moves. Previous StageOne datasets had 90% random moves.

AlphaZero V5

This model was trained on 10 different StageTwo datasets, consisting of 1,000,000 examples each.

AlphaZero V6

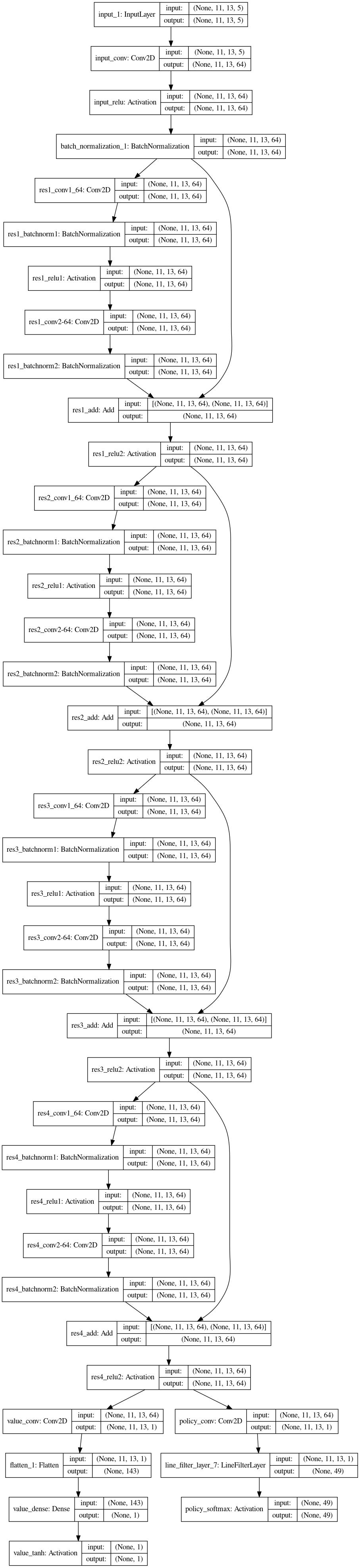

Have a look at the AlphaZeroV6 model architecture.

First model with a second output that estimates the probability to win the game from the current player’s perspective. The model was trained on a 5x4 StageThree dataset with 1,000,000 examples.

In this version, the value head of the network is built with a fixed Dense layer as a first proof of concept. The input of the value head is attached to the output of the “tower”, which is made of four residual blocks. First, a convolutional layer reduces the number of planes to a single plane. Then, the flattened output is connected to a special dense layer, where the weights are constant: they are not trained and are all set to 1 / (image width * image height). Finally, a tanh activation is applied so that the value output is in the range from -1 to 1.

The following excerpt shows the creation of the value head:

x = Conv2D(1, kernelSize, padding='same', kernel_regularizer=l2(l2reg), name="value_conv")(res_out)
x = Flatten()(x)
x = Dense(1, trainable=False, kernel_initializer=Constant(1.0/(imgWidth*imgHeight)), use_bias=False, name="value_dense")(x)
x = Activation("tanh", name="value_tanh")(x)
value_output = x

This model setup enforces a board size, because Keras’ Flatten and Dense layer require a known input size. Due to this limitation, AlphaZeroV6 is not included in the evaluation process.

AlphaZero V7

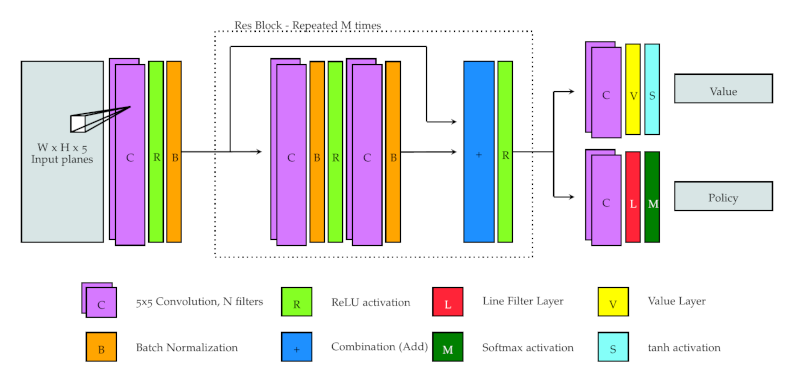

Have a look at the raw version of AlphaZeroV7 model architecture or see the following image for a general depiction of the network’s architecture:

AlphaDots neural network architecture
AlphaDots neural network architecture

This is the first model to use the custom ValueLayer, which acts like the previously described setup of the Flatten and Dense layers, but supports arbitrary input sizes like the LineFilterLayer.

Additionally this model has 8 residual blocks instead of 4. It also has 128 filters in each convolutional layer instead of 64. As a result, it takes about twice as long to train one epoch.

Model Games Wins vs. Easy in 1000 games Wins vs. Medium in 1000 games Wins vs. Hard in 1000 games Errors
AlphaZeroV7 3000 951 860 501 0

AlphaZero V8

This version is based on AlphaZeroV7 and simply received 8 more epochs of training on 2.000.000 StageThree samples with a board size of 4x3. Direct model evaluation resulted in significantly worse performance when playing against the Hard AI of KSquares:

Model Games Wins vs. Easy in 1000 games Wins vs. Medium in 1000 games Wins vs. Hard in 1000 games Errors
AlphaZeroV8 3000 913 411 229 0

AlphaZero V9

This version is based on AlphaZeroV7 and trained on a small StageFour dataset with data augmentation. Since it takes a very long time to generate StageFour data, the generated data is augmented by flipping input and policy images vertically, horizontally or both. There are four augmented variants for each sample:

As a result the number of distinct samples to train on is 5 * #StageFourSamples. The implementation is based on keras.utils.Sequence.

AlphaZero V10

AlphaZeroV10 is not a python notebook but a python script, that is used by KSquares’s Self-Play mode to train neural networks on newly generated data. This script is designed to be a little more versatile than the usual IPython notebook. It was used to improve other AlphaZero versions, like for example AlphaZero V11.

AlphaZero V11

The linked notebook only constitutes the very first part of AlphaZero V11 because it creates a base version of the model, which was then improved by KSquares’s self-play mode with the StageFourNoMCTS dataset generator. V11 received training in 38 iterations on various board sizes. Each iteration had 10,000 samples which were augmented like in AlphaZero V9. Training happened for 3 epochs per iteration.

AlphaZeroV12

This AlphaZero model was trained for 35 iterations with 500,000 examples per iteration that were created with the StageFour (NoMCTS) dataset generator. The dataset generator was configured with the following parameters:

For each iteration one board size was selected randomly from the configured list.

Training ran for eight days in a Docker container on a computer in the MEVIS lab, kindly provided by Hans Meine - thank you for your support!

AlphaZeroV13 / AlphaZeroV13_SP

This model was used in a first evaluation of the self-play reinforcement learning. First, AlphaZeroV13 was trained with supervised learning exclusively on 3x3 boards. Afterwards, it was trained with the self-play mode in KSquares to create. The results were very bad - the V13_SP model lost all games after training.

To find out what went wrong, AlphaZero MCTS was run with V13 on the 13 Berlekamp Tests to debug the MCTS algorithm. This lengthy process is documented partly in a Jupyter notebook. After fixing bugs, most of Berlekamp’s tests are passed by AlphaZero MCTS with the V13 model.

AlphaZeroV14 / AlphaZeroV14_SP

After fixing a lot of bugs in the AlphaZero MCTS algorithm, this model was first trained with supervised learning on 2 million 3x3 boards (V14) and then trained for 50 iterations with 128 examples each in self-play (V14_SP).

Model Games Wins vs. Easy in 10 games Wins vs. Medium in 10 games Wins vs. Hard in 10 games Errors
AlphaZeroV14_MCTS 300 93 84 60 0
AlphaZeroV14_SP_MCTS 300 98 87 39 0

At least it does not degrade as fast as V13. Nevertheless the results of self-play training are subpar.

Create AlphaZero models

To add a new model to AlphaDots, you have to create a neural network and list it in the modelServer/models/models.yaml file that stores all available models. The easiest way to do this is to use the createModel.py script that creates AlphaZero models and adds them to the model list. If that does not fit your needs, here is an explanation of the entries in models.yaml so that you can add your own models:

  - name: AlphaZeroV7
    desc: Seventh AlphaZero model
    path: alphaZero/model/alphaZeroV7.h5
    type: PolicyValue
    ai: ConvNet

Script to create new AlphaZero models

The createModel.py script creates new AlphaZero models according to the provided parameters and adds the new model to the list of available models in AlphaDots. It supports the following configuration options:

After creating a model, it can be trained with KSquares’ self-play mode.

Dataset converter

The converter is called by kSquares to receive data and store it as a numpy array. Information about the dataset size in terms of image size and number of samples are provided as command line arguments.

Later datasets generate the numpy array files themselves, because it’s faster.

Model server

There are multiple iterations of model servers. Common to all server versions is that they provide an interface based on ZeroMQ which receives and sends Protobuf messages.

There are different types of model handlers, depending on the overall design of the model. The model handlers are described in the section about creating new models in the type part.

modelServer.py

Originally, this script was launched by KSquares for each model used by an AI. KSquares kept track of all running model servers and was responsible for starting and stopping the servers. For each model KSquares started its own server. If more than one AI instance needed the same model, KSquares did not start another modelServer.py but used the existing one.

The model server accepts and sends different protobuf messages, depending on the associated model handler.

KSquares crashed when it stopped the modelServer process from the wrong thread. There seemed to be problems with disconnecting QSocketNotifiers when it was done from another thread than the one that started the process. It turned out that it would be rather cumbersome to refactor the handling of processes so instead of refactoring the C++ code, the handler was rewritten in Python.

The new version starts subprocesses. There is one process that hosts all GPU model servers and one process for each CPU model server.
